 ### Relacionales (SQL)
-<div class="box-compact">
+<div class="box-supercompact">

 | Tipo                    | Características principales                                    | Casos de uso                         | Ejemplos                 |
 |-------------------------|--------------------------------------------------------------|--------------------------------------|--------------------------|
@@ -133,7 +133,7 @@ style: |

 ### No Relacionales (NoSQL)

-<div class="box-compact">
+<div class="box-supercompact">

 | Tipo               | Características principales                          | Casos de uso                          | Ejemplos            |
 |--------------------|-----------------------------------------------------|---------------------------------------|---------------------|
@@ -275,10 +275,11 @@ Construir un sistema:

 ### Tecnologías

-- BD relacion -> productos, categorías, usuarios... (**integridad**)
+- BD relacional -> productos, categorías, usuarios... (**integridad**)
 - Redis -> estado activo de las subastas (**velocidad**)
 - MongoDB -> almacenamiento histórico (**flexibilidad**)
 - APIs REST -> integración entre servicios (**desacoplamiento**)
+- Spring Data REST -> exponer repositorios como API (**agilidad**)

 ---

@@ -335,14 +336,9 @@ Construir un sistema:
 - Soporte de TTL (expiración automática)
 - Estructuras avanzadas (listas, sets, etc.)

----
-
-## Casos de uso
+### Casos de uso

-- Cache
-- Estado temporal
-- Sesiones
-- Sistemas en tiempo real
+- Cache, Estado temporal, Sesiones, Sistemas en tiempo real

 ---

@@ -370,6 +366,49 @@ Construir un sistema:
 ---


+## Spring Data REST
+
+### ¿Qué es?
+
+- Componente de Spring que expone automáticamente repositorios como API REST
+- Genera endpoints CRUD sin necesidad de controladores
+- Basado en HATEOAS (Hypermedia)
+
+
+### ¿Qué hace?
+
+- Expone entidades directamente como recursos REST
+- Genera endpoints como:
+  - GET /api/items
+  - GET /api/items/{id}
+- Incluye enlaces (_links) para navegación entre recursos
+
+---
+
+<div class="box success">
+
+#### ¿Cuándo usarlo?
+
+- Prototipos rápidos
+- APIs CRUD simples
+- Sistemas con bajo control de lógica de negocio
+- Cuando se quiere reducir código boilerplate
+
+</div>
+<br>
+<div class="box danger">
+
+#### ¿Cuándo NO usarlo?
+
+- Lógica de negocio compleja
+- APIs públicas que requieren mayor personalización
+- Necesidad de control fino sobre endpoints
+- Cuando el modelo interno no debe exponerse directamente
+
+</div>
+
+---
+
 ## Resolviendo los desafíos


@@ -536,6 +575,24 @@ La reactividad es una forma distinta de modelar el flujo del sistema

 ---

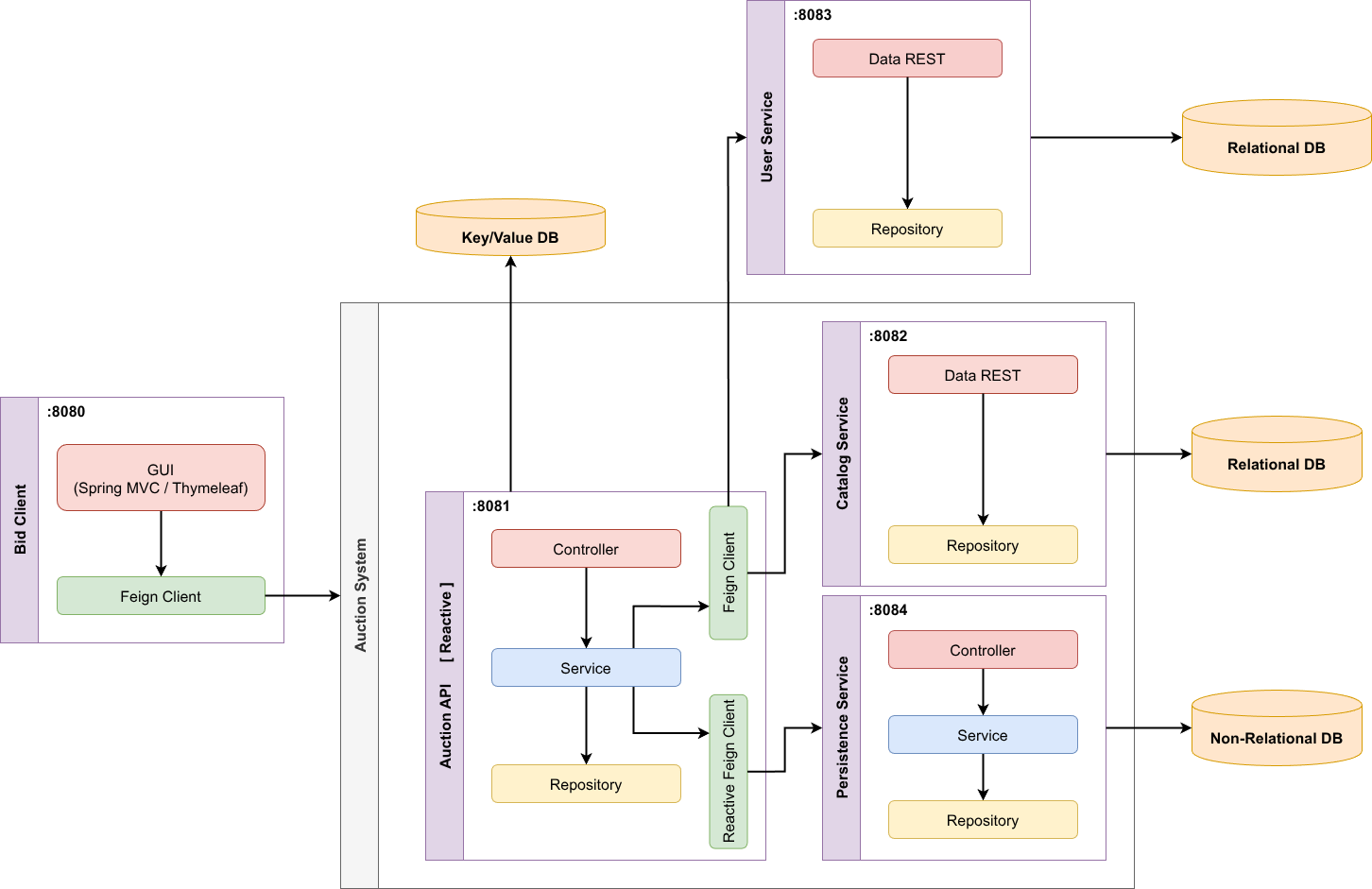

-<img src="img/diagrama_componentes.png" width="90%"/>

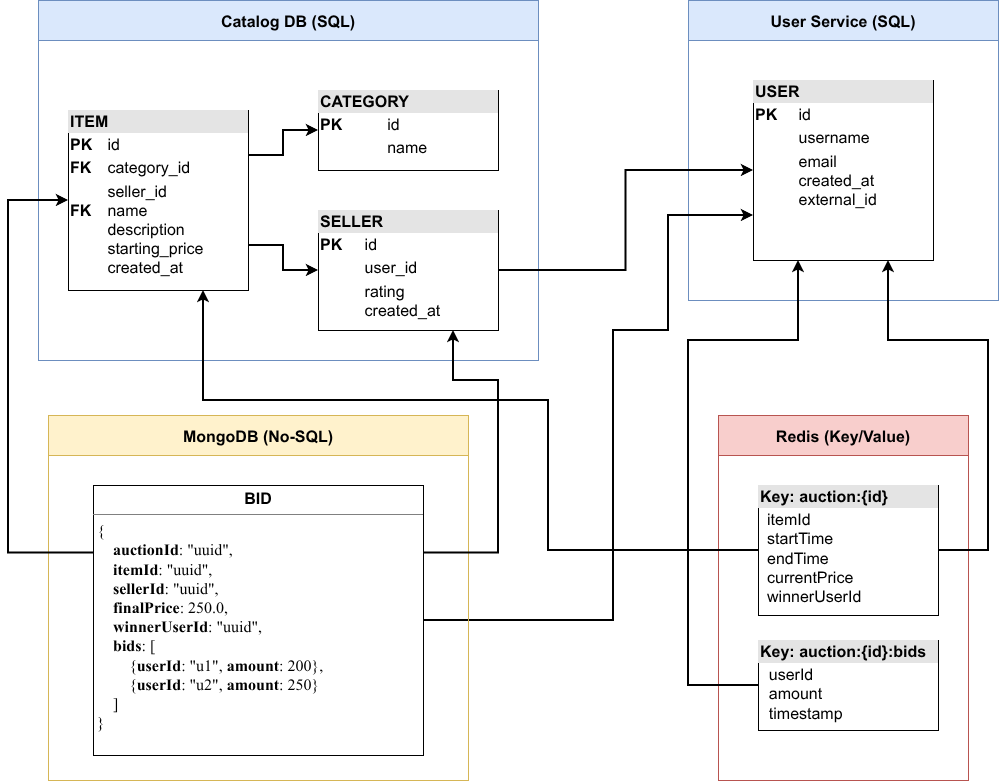

+<img src="img/diagrama_bbdds.png" width="70%"/>

 ---
+
+### Todo esto está implementado en:
+
+- **Auction API**
+  - https://inmaculados.uv.es/dagarcos/bidflow-auction-api
+- **Auction Catalog**
+  - https://inmaculados.uv.es/dagarcos/bidflow-auction-catalog
+- **Auction Persistence**
+  - https://inmaculados.uv.es/dagarcos/bidflow-auction-persistence
+- **Auction Users**
+  - https://inmaculados.uv.es/dagarcos/bidflow-users
+- **Bid Client**
+  - https://inmaculados.uv.es/dagarcos/bidflow-bid-client
+
+<br>
+
+Vamos a ver algunas particularidades de la implementación
+

Slides/img/diagrama_componentes.drawio
